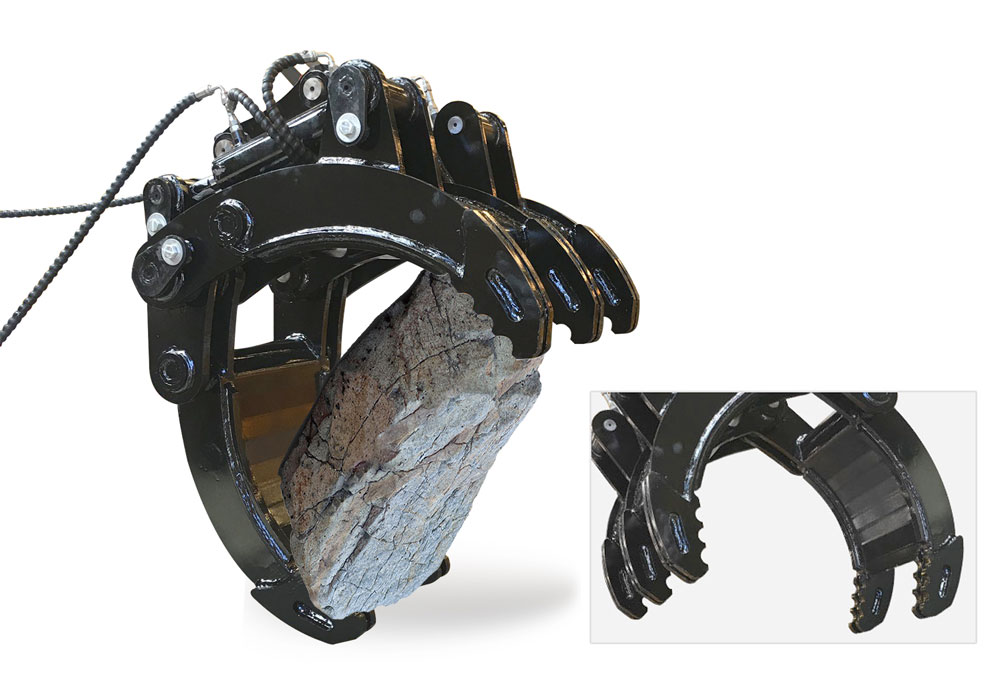

Hydraulic grapple to handle all sorts of materials in recycling or demolition applications using the strength of your excavator. It is available in a wide-range of widths and tine configurations.Each version made specifically for the user's needs.
Email: equip@lichmach.com
Hydraulic grapple to handle all sorts of materials in recycling or demolition applications using the strength of your excavator. It is available in a wide-range of widths and tine configurations.Each version made specifically for the user’s needs. Grapple use a strategic arrangement of bearings, seals, o-rings, and collars in the main pivot to guard this critical area.
| Model | 3T | 5T | 8T | 12T | 20T | 30T |
| Weight (kg) | 255 | 365 | 435 | 720 | 1085 | 1430 |
| Max Opening Size (mm) | 714 | 825 | 856 | 1035 | 1155 | 1200 |
| High(mm) | 915 | 1012 | 1049 | 1 190 | 1400 | 1540 |
| Width(mm) | 590 | 673 | 715 | 830 | 1051 | 1110 |
| Length ( mm ) | 590 | 635 | 677 | 943 | 964 | 1060 |
Contact With Us
If you have any questions please fell free to contact with us.
