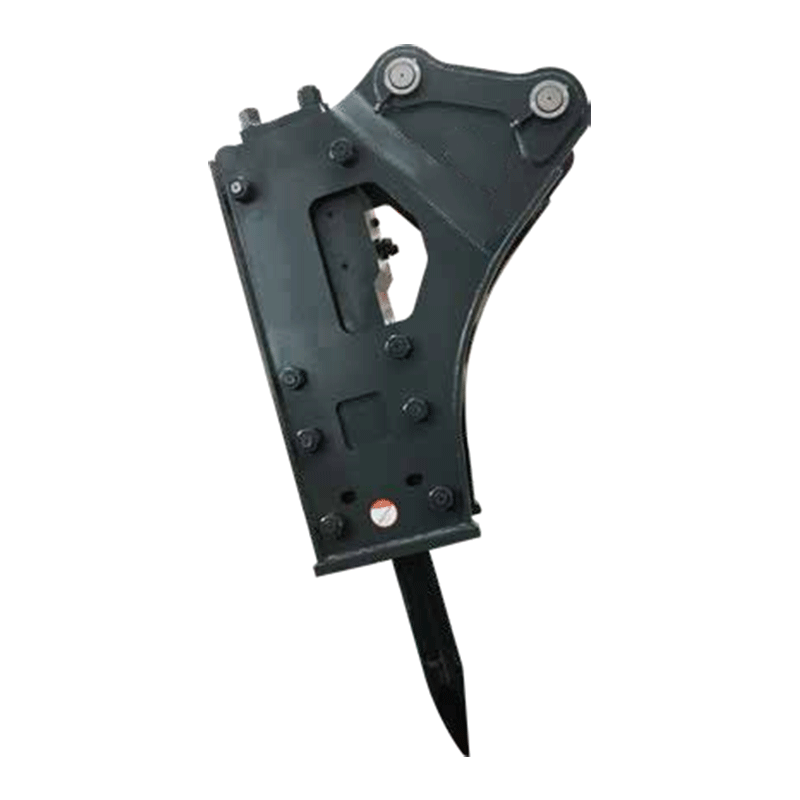

Lichmach Triangular Side-Mount Hydraulic Breaker for Mini to Large Excavators

Lichmach Triangular Side-Mount Hydraulic Breaker for Mini to Large Excavators

BREAKER Description

Excavator side hydraulic breakers are indispensable in mining, demolition, excavation and quarrying as they can cut large boulders and concrete structures. Most contractors prefer to use hydraulic hammers because of its high performance, which is why it is present in most construction sites. Lich side hydraulic breakers reduce manual labor, save energy and follow its efficient and simple working principle.

BREAKER SPECIFICATIONS

Item	Model	Weight	Overall length	Hydraulic working pressure	Hydraulic oil flow	Setting Pressure	Impact Rate	striking energy	Hose diameter	Chisel rod diameter	Suitable  Excavator
Units		(kg)	(mm)	bar	(L/min)	bar	(b.p.m)	(j)	(inch)	(mm)	(ton)
LC-40	LC10	79	936	90~120	15~30	130	600~1100	204	1/2	40	0.5~1.2
LC-45	LC20	105	1071	90~120	20~40	140	600~1100	280	1/2	45	0.8~1.5
LC-53	LC30	166	1170	90~130	20~50	150	600~1100	406	1/2	53	1.5~3.5
LC-60		227	1280	90~130	20~50	150	600~1100	722	1/2	60	4.5~6
LC-68	LC40	289	1398	900~130	40~60	160	500~990	1016	1/2	68	4.5~6
LC-75	LC43	410	1677	120~150	50~90	180	450~980	1835	1/2	75	6~8.5
LC-85		580	1777	130~160	60~100	190	360~690	2055	3/4	85	7~11
LC-100	LC50	841	1997	150~180	80~110	200	350~700	3102	3/4	100	10~15
LC-125		1337	2230	160~180	90~120	210	350~580	6190	1	125	14~18
LC-135	LC20G	1671	2287	160~180	100~150	210	350~500	6190	1	135	18~22
LC-140	LC81	1977	2307	160~220	120~180	210	350~450	6485	1	140	20~24
LC-140F	LC81F	2177	2307	160~220	120~180	210	350~750	6977	1	140	20~27
LC-150	LC30G	2448	2607	170~190	130~190	230	280~400	9380	1 1/4	150	24~27
LC-155	LC121	2739	2700	180~230	180~240	250	200~300	10930	1 1/4	155	24~33
LC-155F	LC121F	2787	2700	180~230	180~240	250	200-400	11977	1 1/4	155	27~33
LC-165	LC131	3217	2977	200~240	190~260	260	150~300	13200	1 1/4	165	33~36
LC-175	LC151	3757	3220	210~240	200~250	270	120~200	15500	1 1/4	175	35~38
LC-175L	LC151L	4257	3350	210~240	200~250	290	120~200	16507	1 1/4	175	36~42
LC-185		4307	3327	220~260	220~280	300	120~180	22380	1 1/4	185	37~50
LC-190		4986	3537	240~280	240~280	300	110~160	24280	1 1/4	190	40~50
LC-195		5400	3627	260~300	250~320	320	100~140	25490	1 1/4	195	45~55
LC-200		6388	3837	260~300	260~340	320	100~140	29700	1 1/4	200	48~60
LC-205		6780	3847	260~300	280~360	330	100~140	32260	1 1/4	205	52~60
LC-210		7017	3917	260~300	280~360	330	100~140	35670	1 1/₂	210	55~65
LC-220		7137	4047	260~300	280~360	330	100~140	37280	1 1/₂	220	60~65
LC-220L		7520	4177	260~300	300~430	340	100~140	47000	1 1/₂	220	65~100
LC-230		8909	4227	260~300	330~430	340	90~130	49800	1 1/₂	220	70~100
LC-240		92200	4257	260~300	330~430	340	90~130	59800	1 1/₂	220	70~120
LC-260		10888	4877	260~300	420~550	350	90~130	62000	1 1/₂	220	90~150

Advantages of our Lich Side breaker hammer

Side-mounted hydraulic breaker hammers provide numerous advantages across construction, demolition, and mining operations.

Enhanced Productivity: HAWK Excavator hydraulic breakers deliver powerful, high-impact force, enabling the efficient breaking of rock, concrete, and other tough materials. This significantly boosts productivity by reducing both the time and effort needed to complete tasks.

Exceptional Versatility: Designed for a wide range of applications—including demolition, excavation, trenching, and breaking oversized materials—HAWK side-mounted breaker hammers are compatible with various carriers such as excavators, backhoes, and skid steer loaders. This adaptability allows operators to tackle diverse challenges with a single, reliable tool.

Energy efficiency: Side Hydraulic breaker hammers use the hydraulic power of the carrier, which is generally more energy-efficient than pneumatic or mechanical systems. This results in lower fuel consumption and reduced emissions.

Applications: Break up concrete, rock, and other hard materials.



What is a side-mounted hydraulic breaker hammer, and how does it differ from other types?

A side-mounted hydraulic breaker hammer is a demolition attachment installed on the side of heavy machinery such as excavators or backhoes, rather than the front. Unlike front-mounted breakers, side-mounted designs offer greater flexibility and maneuverability, particularly useful when working in tight or confined spaces.

What are the main advantages of using side-mounted hydraulic breaker hammers?

Side-mounted breakers provide a range of benefits, including:

• Improved operator visibility

• Easier access to narrow or restricted areas

• Better machine stability during operation

• Reduced stress and wear on the carrier

• Increased versatility for handling various demolition, excavation, and trenching tasks

How do I determine if a side-mounted hydraulic breaker hammer is compatible with my equipment?

Compatibility depends on several factors, including:

• The weight and size of the breaker

• The hydraulic flow and pressure requirements

• The mounting system of your machine

To ensure a proper fit and optimal performance, it’s recommended to consult with a heavy equipment specialist or the manufacturer. They can help match the breaker to your specific machine model and application needs.
