This hydraulic crawler excavator is well-suited for various applications including construction, landscaping, utility work, and more. Its versatility, power, and precision make it an ideal choice for contractors seeking reliable machinery.
Engine:
Powered by the Yanmar 3TNV74F engine, a three-cylinder direct injection powerplant with a displacement of 0.993L, the excavator combines reliability and power. With a power output of 11.2kW at 2400rpm, it ensures efficient operation.
Travel System:
Equipped with the Eddie FTM01A travel motors, the excavator offers a travel speed range of 2.2 to 4.3 km/h. Its impressive drawbar pulling force of 18kN and gradeability of 58% make it suitable for various terrains.
Hydraulic System (Hengli HVSE):
The excavator features a Hengli HVSE-09 main valve and Hengli HP5VS28 variable plunger pump, ensuring smooth and precise hydraulic performance. This system facilitates efficient digging and lifting operations.
Swing System:
With a Danfoss Eaton swing motor (SW2.5K-195), the excavator offers a swing speed range of 0 to 9.5 rotations per minute. This responsive system ensures accurate positioning for intricate tasks.
Digging Force and Operating Weight:
The LC18 boasts substantial digging force, with a bucket digging force of 16kN and an arm digging force of 9.5kN. Its operating weight of 1800kg ensures a balanced combination of power and maneuverability.
Bucket and Dimensions:
The excavator is equipped with a standard GP bucket with a capacity of 0.04m3 and a width of 450mm. Its compact dimensions, including a maximum digging depth of 2270mm and a maximum digging radius at ground level of 3845mm, enable it to navigate tight spaces while achieving impressive reach.
The LC18 incorporates key features such as reliable track rollers, effective track shoes (37×2), and a comprehensive cooling system (5L). Its intuitive control system ensures operator comfort and productivity.

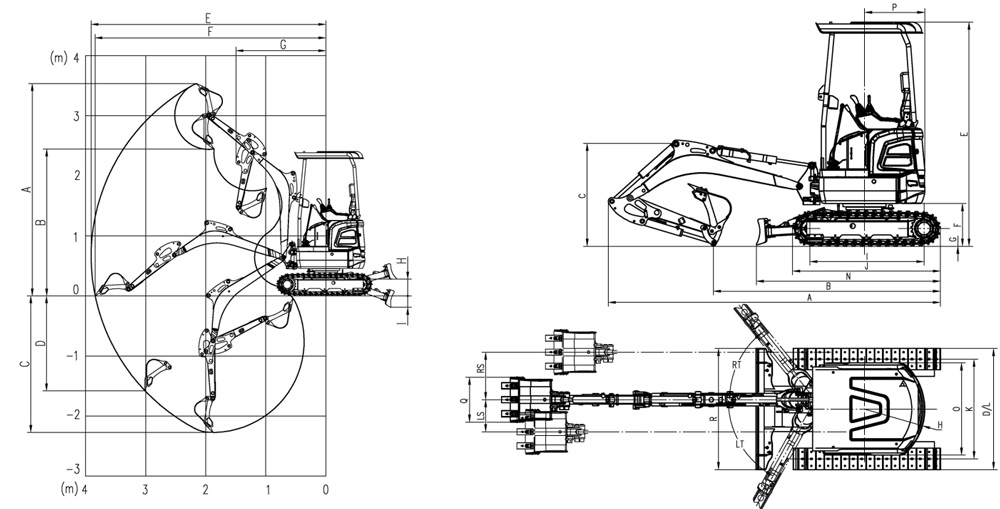

| Scope of Work (mm) | ||
|---|---|---|
| A | Max. digging height | 3535 |
| B | Max. dumping height | 2445 |
| C | Max. digging depth | 2270 |
| D | Max. vertical digging depth | 1910 |
| E | Max. Depth cut for 2500mm Level Bottom | 1520 |
| F | Max. digging distance | 3910 |
| G | Max. digging radius at ground level | 3845 |
| H | Max.Lifting height of bulldozer blade | 280 |
| I | Max.cutting depth of bulldozer | 190 |
| Dimensions (mm) | 950mm | |||||
| A | Overall length | 3575 | I | Crawler wheel base | 1230 | |
| B | Ground contact length (Transportation) | 2440 | J | Track length | 1593 | |
| C | Overall height(to top of boom) | 1105 | K | Track gauge | 760/1070 | |
| D | Overall width | 990/1300 | L | Track width | 990/1300 | |
| E | Overall height(to top of cab) | 2405 | M | Shoe width | 230 | |
| F | Counter weight ground clearance | 460 | O | Bonnet height | not applicable | |
| G | Ground clearance | 145 | P | Revolving frame width | 990 | |
| H | Tail swing radius | 650 | Q | Distance from swivel center to tail | 650 | |
