Lich Excavator Hydraulic breaker Hammer Introduce

Lich Excavator Hydraulic breaker Hammer Introduce

Product Description

The power source of the hydraulic breaker is the pressure oil provided by the pump station of the excavator or loader. It can more effectively clean the floating stones and the soil in the rock gaps when digging the foundation of the building. The principle of selecting a hydraulic breaker is to choose the most suitable hydraulic breaker according to the excavator model and the working environment.

Classification

Here are many types of hydraulic breakers and there are many classification methods. We often use appearance to classify.

TOP TYPE

The hydraulic breaker is powered by the pressurized oil supplied by the excavator or loader’s pump station, allowing it to more efficiently remove loose stones and soil from rock crevices during building foundation excavation.



Triangle TYPE

Triangle Side-mounted hydraulic breaker hammers provide numerous advantages across construction, demolition, and mining operations.

Enhanced Productivity: Lich Excavator hydraulic breakers deliver powerful, high-impact force, enabling the efficient breaking of rock, concrete, and other tough materials. This significantly boosts productivity by reducing both the time and effort needed to complete tasks.

Exceptional Versatility: Designed for a wide range of applications—including demolition, excavation, trenching, and breaking oversized materials—Lich side-mounted breaker hammers are compatible with various carriers such as excavators, backhoes, and skid steer loaders. This adaptability allows operators to tackle diverse challenges with a single, reliable tool.

SILENCED TYPE

The main advantage of a silence-type hydraulic hammer lies in its ability to greatly minimize noise pollution compared to traditional hydraulic breakers.

This feature makes it especially suitable for use in residential neighborhoods, urban settings, or other noise-sensitive environments where strict regulations or community concerns must be carefully addressed.

Product Parameter

Item	Model	Weight	Overall length	Hydraulic working pressure	Hydraulic oil flow	Setting Pressure	Impact Rate	striking energy	Hose diameter	Chisel rod diameter	Suitable  Excavator
Units		(kg)	(mm)	bar	(L/min)	bar	(b.p.m)	(j)	(inch)	(mm)	(ton)
LC-40	LC10	79	936	90~120	15~30	130	600~1100	204	1/2	40	0.5~1.2
LC-45	LC20	105	1071	90~120	20~40	140	600~1100	280	1/2	45	0.8~1.5
LC-53	LC30	166	1170	90~130	20~50	150	600~1100	406	1/2	53	1.5~3.5
LC-60		227	1280	90~130	20~50	150	600~1100	722	1/2	60	4.5~6
LC-68	LC40	289	1398	900~130	40~60	160	500~990	1016	1/2	68	4.5~6
LC-75	LC43	410	1677	120~150	50~90	180	450~980	1835	1/2	75	6~8.5
LC-85		580	1777	130~160	60~100	190	360~690	2055	3/4	85	7~11
LC-100	LC50	841	1997	150~180	80~110	200	350~700	3102	3/4	100	10~15
LC-125		1337	2230	160~180	90~120	210	350~580	6190	1	125	14~18
LC-135	LC20G	1671	2287	160~180	100~150	210	350~500	6190	1	135	18~22
LC-140	LC81	1977	2307	160~220	120~180	210	350~450	6485	1	140	20~24
LC-140F	LC81F	2177	2307	160~220	120~180	210	350~750	6977	1	140	20~27
LC-150	LC30G	2448	2607	170~190	130~190	230	280~400	9380	1 1/4	150	24~27
LC-155	LC121	2739	2700	180~230	180~240	250	200~300	10930	1 1/4	155	24~33
LC-155F	LC121F	2787	2700	180~230	180~240	250	200-400	11977	1 1/4	155	27~33
LC-165	LC131	3217	2977	200~240	190~260	260	150~300	13200	1 1/4	165	33~36
LC-175	LC151	3757	3220	210~240	200~250	270	120~200	15500	1 1/4	175	35~38
LC-175L	LC151L	4257	3350	210~240	200~250	290	120~200	16507	1 1/4	175	36~42
LC-185		4307	3327	220~260	220~280	300	120~180	22380	1 1/4	185	37~50
LC-190		4986	3537	240~280	240~280	300	110~160	24280	1 1/4	190	40~50
LC-195		5400	3627	260~300	250~320	320	100~140	25490	1 1/4	195	45~55
LC-200		6388	3837	260~300	260~340	320	100~140	29700	1 1/4	200	48~60
LC-205		6780	3847	260~300	280~360	330	100~140	32260	1 1/4	205	52~60
LC-210		7017	3917	260~300	280~360	330	100~140	35670	1 1/₂	210	55~65
LC-220		7137	4047	260~300	280~360	330	100~140	37280	1 1/₂	220	60~65
LC-220L		7520	4177	260~300	300~430	340	100~140	47000	1 1/₂	220	65~100
LC-230		8909	4227	260~300	330~430	340	90~130	49800	1 1/₂	220	70~100
LC-240		92200	4257	260~300	330~430	340	90~130	59800	1 1/₂	220	70~120
LC-260		10888	4877	260~300	420~550	350	90~130	62000	1 1/₂	220	90~150

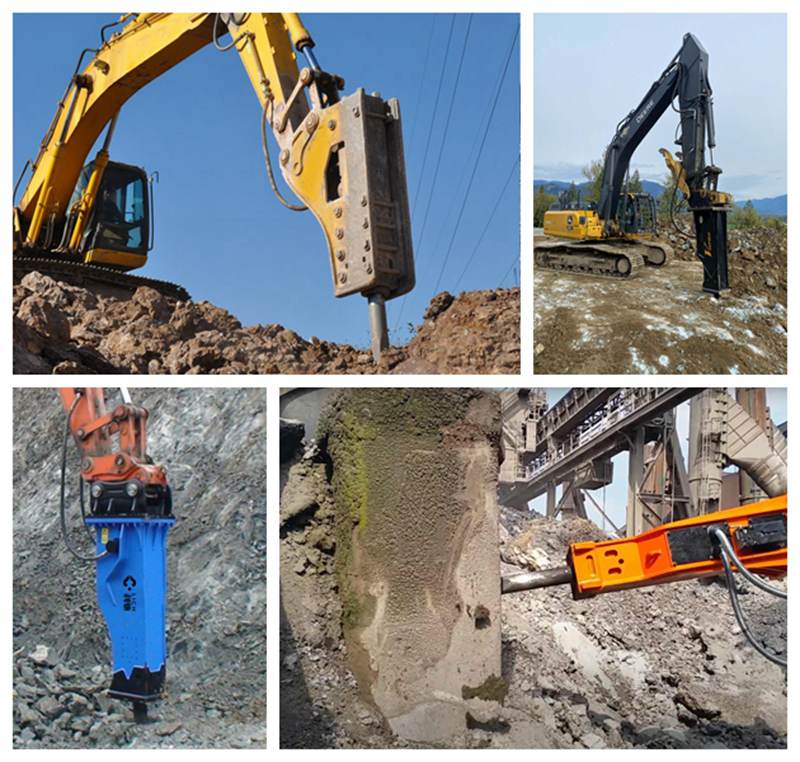

Usage:

Demolition of buildings, crushing of concrete, secondary crushing of mines, repair of highways, crushing of cement pavements, etc

Building demolition, tunnel excavation, mining, concrete rushing. In the metallurgical field, it can be used for cleaning steadies and slag, dismantling furnaces, and dismantling equipment foundations

Features: High impact frequency, high impact energy, and low energy consumption are widely used due to their efficient crushing ability and flexibility.
