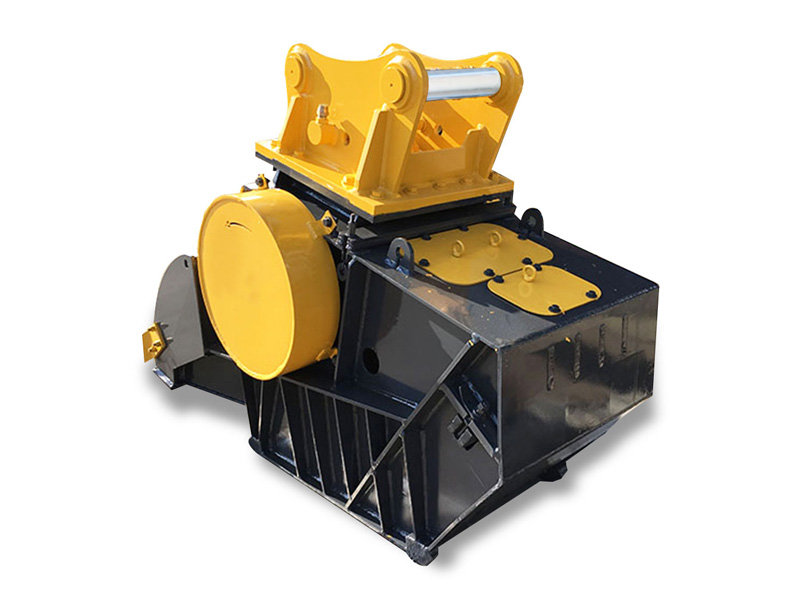

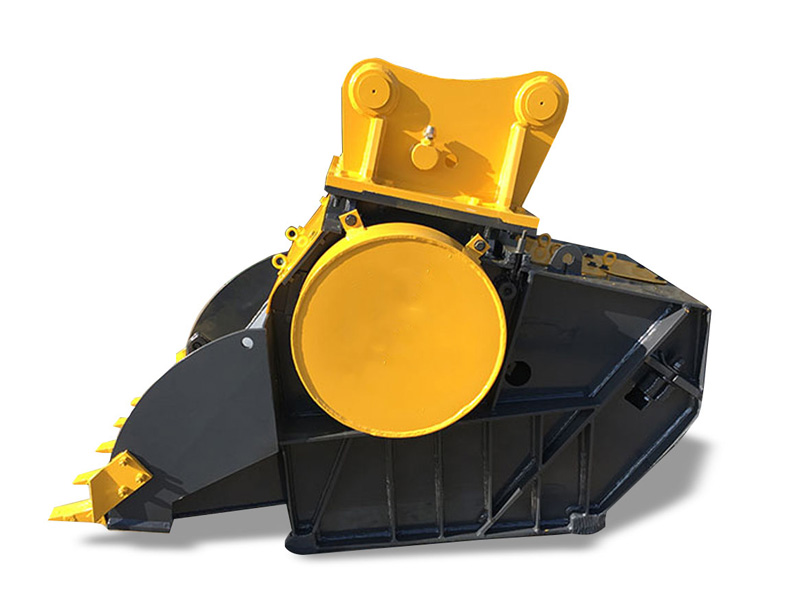

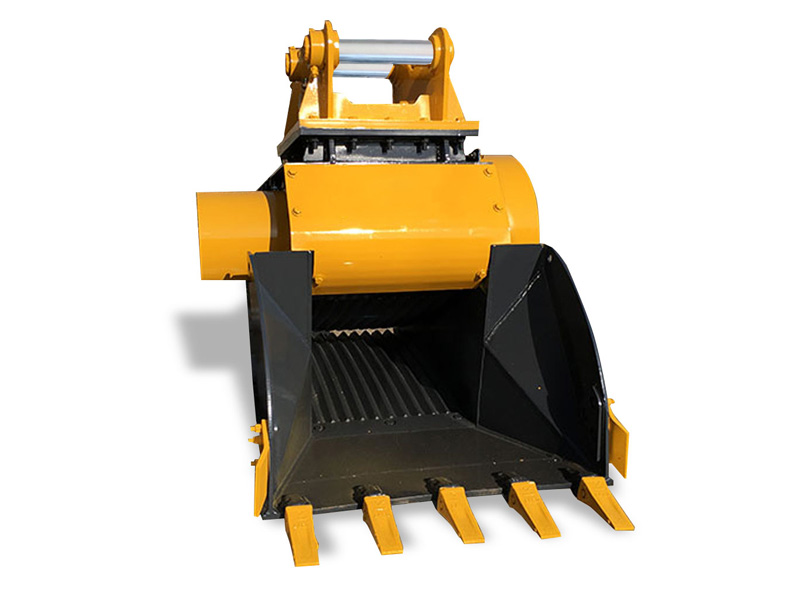

Crusher Bucket is usually installed on the excavator, using the hydraulic power of the excavator, relying on the strong pinch of the upper and lower jaws to crush the stone, which can crush the stone and construction waste, and can quickly separate the steel bars in the concrete, which can reduce the handling of concrete blocks on the project site.
Email: equip@lichmach.com
Crusher Bucket is usually installed on the excavator, using the hydraulic power of the excavator, relying on the strong pinch of the upper and lower jaws to crush the stone, which can crush the stone and construction waste, and can quickly separate the steel bars in the concrete, which can reduce the handling of concrete blocks on the project site. The transportation and other engineering costs caused by the crushed stone have prompted the concrete waste to be directly recycled and reused on the construction site.
| Model | LCSD-70 | LCSD-120 | LCSD-200 | LCSD-300 | LCSD-670 | LCSD-870 |
| Excavator weight (t) | 6-10 | 10-18 | 18-30 | 30-45 | 50-70 | 75-90 |
| Bucket capacity(m³) | 0.2 | 0.45 | 0.74 | 1.15 | 1.47 | 2.23 |
| Oil Flow (l/min) | 40-45 | 80-100 | 180-200 | 260-280 | 340-360 | 440-460 |
| Feeding Size(mm) | 400*330 | 400*550 | 500*700 | 500*1000 | 670*1150 | 670*1316 |
| Whole Size(mm) | 1630*1013*1150 | 1950*1120*1500 | 2506*1325*1730 | 2346*1576*1665 | 2882*2105*2137 | 2882*2271*2137 |
| Overall Weight (kg) | 880 | 1360 | 3450 | 4220 | 6850 | 7668 |
