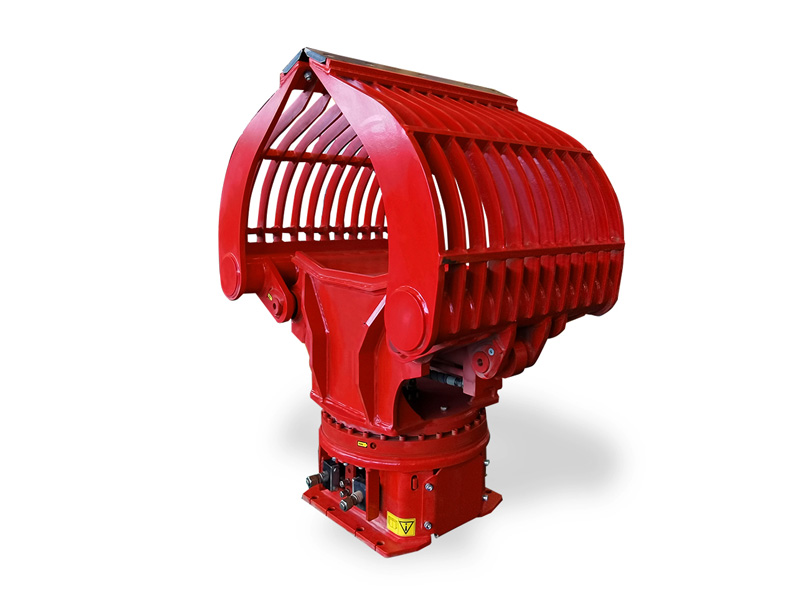

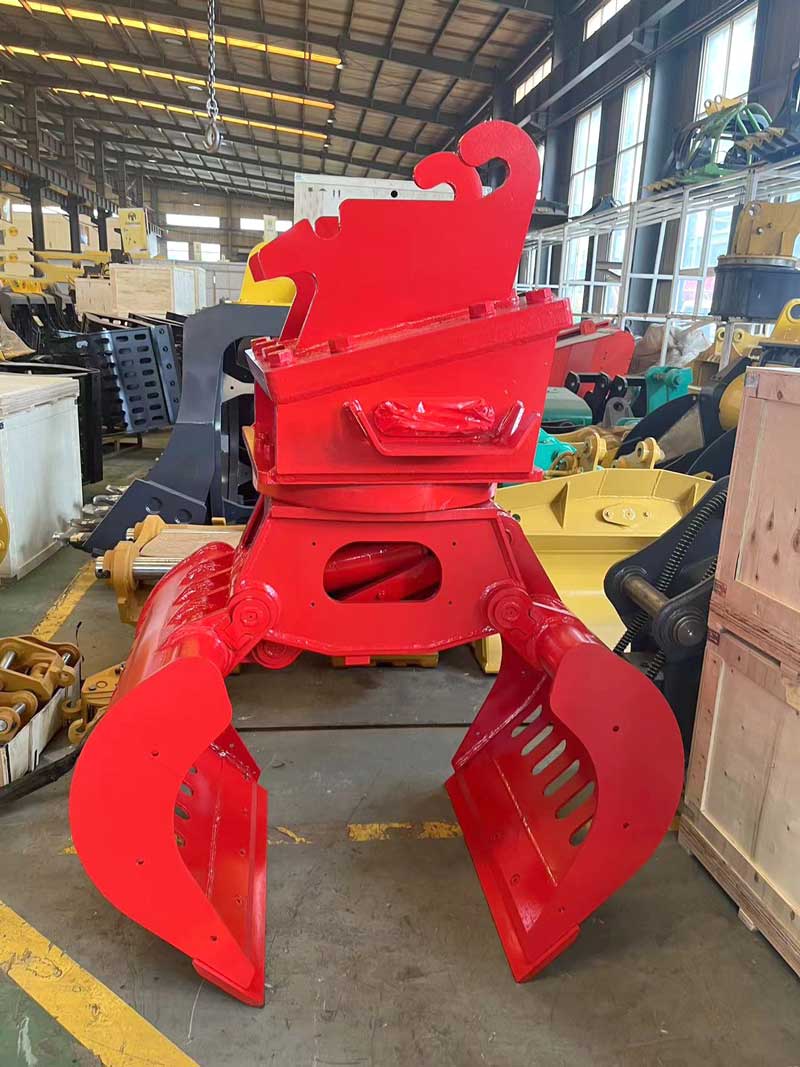

Demolition grapple is a light duty hydraulic grapple that can be used to the maximum extent for various sorting and handling jobs. Demolition grapple can also be applied to some lighter demolition tasks, such as the demolition of brick and wood structures.
Email: equip@lichmach.com
Demolition grapple is a light duty hydraulic grapple that can be used to the maximum extent for various sorting and handling jobs. Demolition grapple can also be applied to some lighter demolition tasks, such as the demolition of brick and wood structures. A key feature of the MDG grab is that due to the use of the most advanced manufacturing materials in the structure, its strong structure flexibility ensures in long arm applications, and the high wear resistant material shortens the time caused by changing wearing parts.
| Model | MDG06 | MDG08 | MDG15 | MDG20 | MDG30 |
| Machine class（t） | 4-6 | 7-10 | 11-17 | 16-23 | 25-40 |
| Jaw Width（mm） | 400 | 550 | 800 | 1000 | 1250 |
| Max Opening（mm） | 1000 | 1400 | 1800 | 2050 | 2400 |
| Working Pressure（bar） | 320 | 320 | 350 | 350 | 350 |
| Oil Flow（L/min） | 50 | 50 | 80 | 80 | 80 |
| Weight（kg） | 280 | 400 | 960 | 1450 | 2080 |
