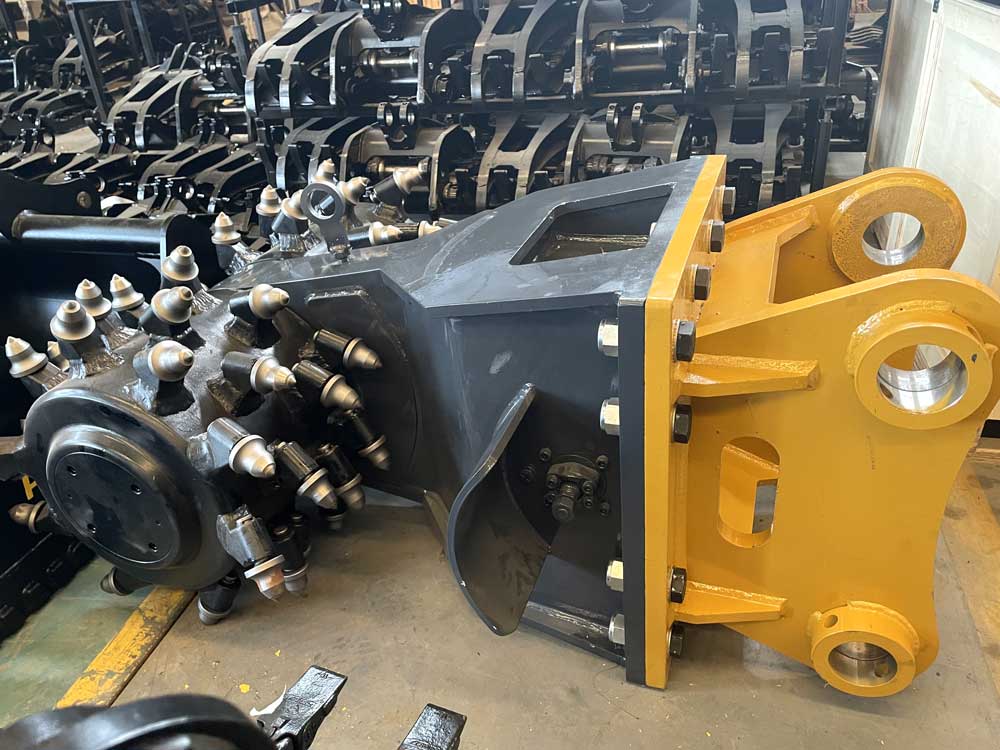

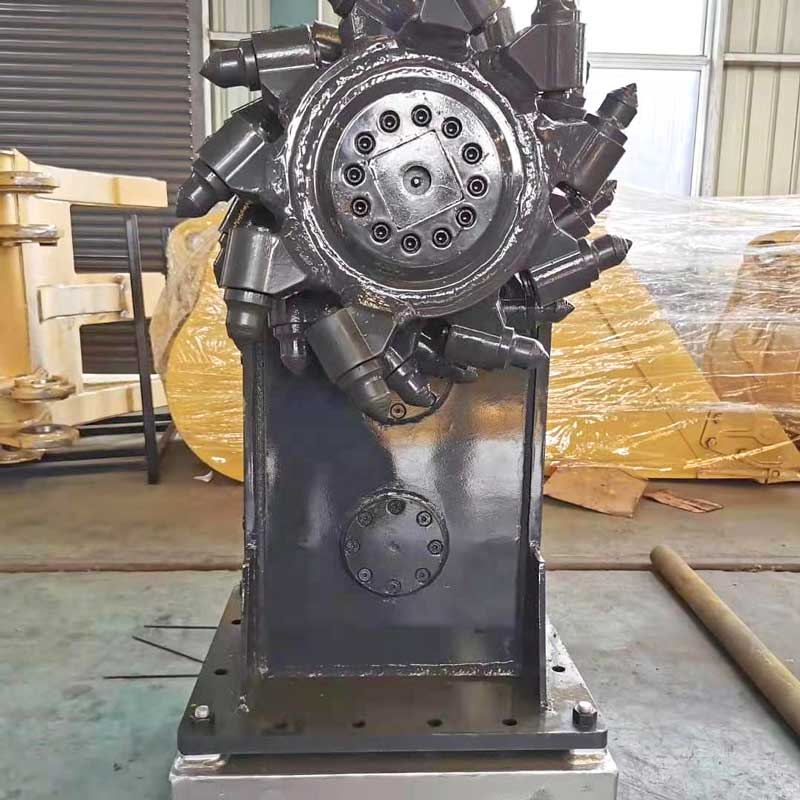

Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field.
Email: equip@lichmach.com
Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field.
| Model | LCMD80 | LCMD150 | LCMD240 | LCMD350 | LCMD450 |
| Operating Weight（kg） | 372 | 845 | 1340 | 1860 | 2620 |
| Input Power（kw） | 25 | 30 | 52 | 60 | 120 |
| Max. Power（kw） | 34 | 40 | 62 | 70 | 140 |
| Max. Operating Power（bar） | 350 | 350 | 350 | 350 | 350 |
| Oil Flow（I/min） | 30-50 | 60-90 | 80-140 | 140-210 | 260-450 |
| Cutting Speed（rpm） | 120-200 | 90-130 | 65-113 | 50-9 | 40-70 |
| Cutting Head Torque（Nm） | 3200 | 5800 | 10900 | 24000 | 36000 |
| Cutter Dia.（mm） | 360 | 460 | 590 | 620 | 730 |
| Carrier Weight（tons） | 3.0-8.0 | 8.0-15.0 | 15.0-24.0 | 18.0-35.0 | 30.0-45.0 |
